Gabion Mattress

Gabion mattress is relatively small in height in relation to the lateral dimension of a gabion with the thickness of 0.15-0.5m.

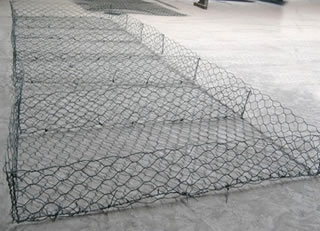

Structure：Mattresses are relatively small in height in relation to the lateral dimension of a gabion and are generally used for channel linings. Normally it was supplied in various lengths, widths and heights.

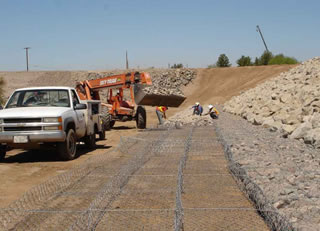

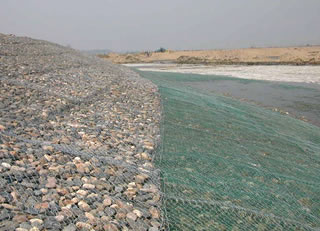

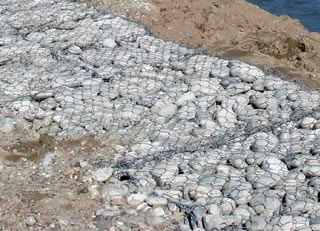

Usage： It is mainly used for foot protection structure of river, foreshore and side slope of sub grade.

Material： Hot Dipped Galvanized Wire, Zn-Al alloy wire(5% Al & 10% Al), PVC coated Wire

Special： improve the slope stability
avoid the river bank suffering by water and storm
realize the natural convection exchange between water body and earth mass
achieve the ecological equilibrium

Length（m）	Width（m）	Height（m）	Opening（cm）
3 m	2 m	0.15-0.20-0.25	5x7
4 m	2 m	0.15-0.20-0.25	5x7
5 m	2 m	0.15-0.20-0.25	5x7
6 m	2 m	0.15-0.20-0.25	5x7
3 m	2 m	0.17-0.23-0.30	6x8
4 m	2 m	0.17-0.23-0.30	6x8
5 m	2 m	0.17-0.23-0.30	6x8
6 m	2 m	0.17-0.23-0.30	6x8
It can be customized as your project design requirement
